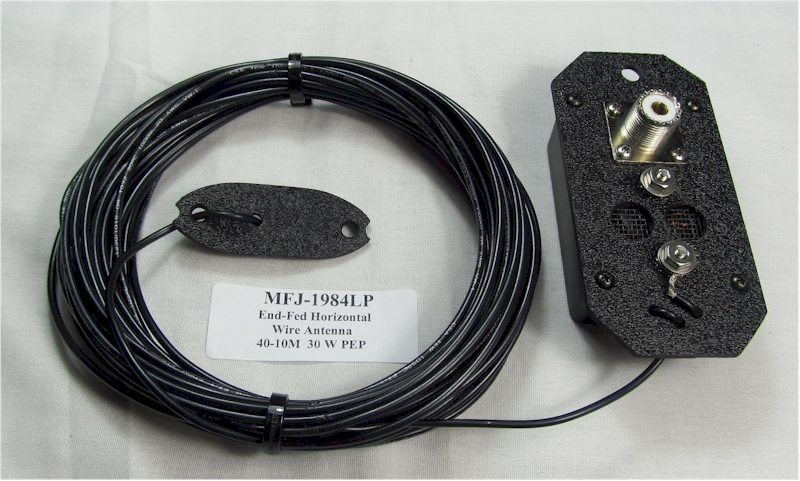

MFJ-1984LP
END FED, HORIZONTAL WIRE ANTENNA


Note: This listing is for one MFJ-1984LP

  • 30 Watts PEP

  • 40-10 Meters

  • 66' Length

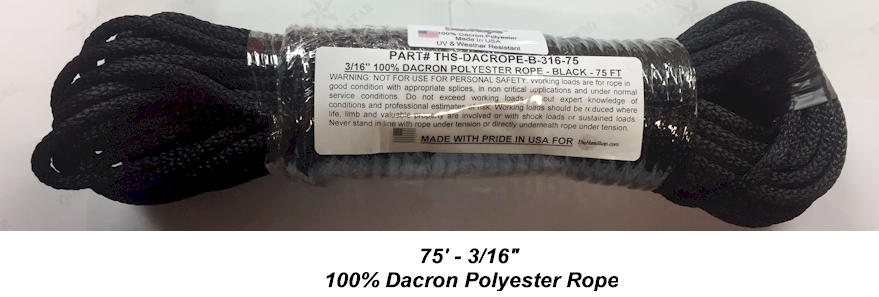

  • 75', 3/16" 100% Dacron Polyester Rope Included!

  • No tuner needed on most frequencies.

  • No long counterpoise, radials or feedline required.

  • Rugged weather-resistant 50-Ohm matching network.

  • Fast Setup and takedown. (Great for a "Bug-Out Bag")

  • Easy Storage/transport.

  • Stainless Hardware, UV resistant materials throughout.

General Description
End-Fed Horizontal Wire antennas (or EFHWA) cover multiple bands without traps, stubs, or resonators. End-fed wires resonate on their 1/2-wave fundamental frequency plus all odd and even harmonics above. By adding a broad-band matching network, the wire's high impedance feed point is transformed down to 50 ohms across a wide frequency range and, in most cases, you won't need a tuner to operate. Note that the single-wire radiator may be installed using only one high center or end support, making it fast and easy to set up at home, on the road, or as a "grab-and-go" emergency antenna.

More Models Available
Six versions of this antenna are available, allowing you to pick the one best suited for your application.

We will be listing Other models as they become available.

Model

Power

Frequency

Length

MFJ-1982LP

30-watts PEP

80-10 meters

132'

MFJ-1982MP

300-watts PEP

80-10 meters

132'

MFJ-1982HP

800-watts PEP

80-10 meters

132'









MFJ-1984LP

30-watts PEP

40-10 meters

66'

MFJ-1984MP

300-watts PEP

40-10 meters

66'

MFJ-1984HP

800-watts PEP

40-10 meters

66'

All MFJ-1982 models come with 132 feet of antenna wire and cover 80, 40, 30, 20, 17, 15, 12, and 10 meters. The only difference between the LP, MP, and HP version is the power rating of the matching network. The MFJ-1982 resonates slightly above the 30-meter band, so a tuner is normally needed for transmitting. Also, note that there is small 6-turn inductor wound into the antenna wire about 6-feet from the matching unit.

All MFJ-1984 models come with 66 feet of wire and cover 40, 30, 20, 15, and 10 meters. Note that 17 and 12 Meters are not covered because they are not harmonically related to the shorter wire length.

Power Rating
All ratings are in Watts-PEP using the SSB or CW mode and transmitting 50% of the time or less per the ICAS (Intermittent Commercial and Amateur Standard). These ratings do not apply to long key-down power applications where the matching network could overheat. De-rate accordingly for these modes.
